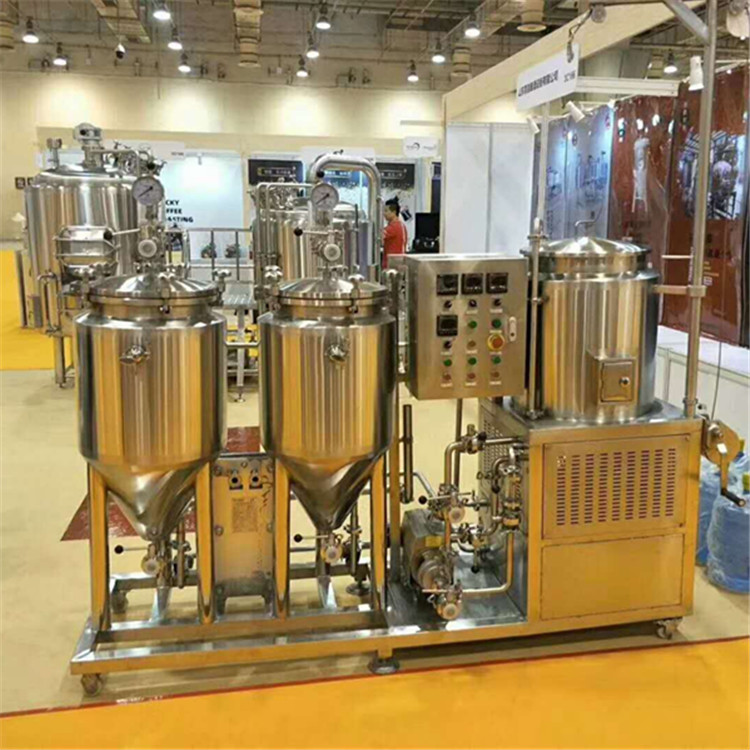

Technical parameter description
Malt Crushing system
1. Type: double roller type
2. Material: all 304
3. Voltage 380V, 3PH, 50Hz, 0.75KW
4. The speed of the fast roller is 700 rpm/min
5. The quality of the whole machine is about 60KG.
1.The inner tank and outer material are made of SUS304, the thickness is 3mm, and the outer material is 2mm thick. Dimensions: D=650, H=1660mm;
2. Electric heating tube. The heating meets the temperature rise of 1-1.5 degrees per minute.
3. Heat-resistant polyurethane foam, with a thickness of 75mm.
4. Rotary sinking counterclockwise tangential feeding, the feeding port is 1/3 below the liquid level; it has a liquid level tube and a breathing hole. There is a bypass between the suspension discharge pipe and the sewage pipe.
6. The precision of platinum resistance is ±0.3 degrees Celsius, and the temperature range is 0-150 degrees Celsius.
7. The interior of the equipment is highly polished, and the welding seam is finely processed, without uneven deformation, etc.; the appearance of the equipment is beautiful, and the pipeline layout and opening positions meet the requirements of operation, site installation and visit.

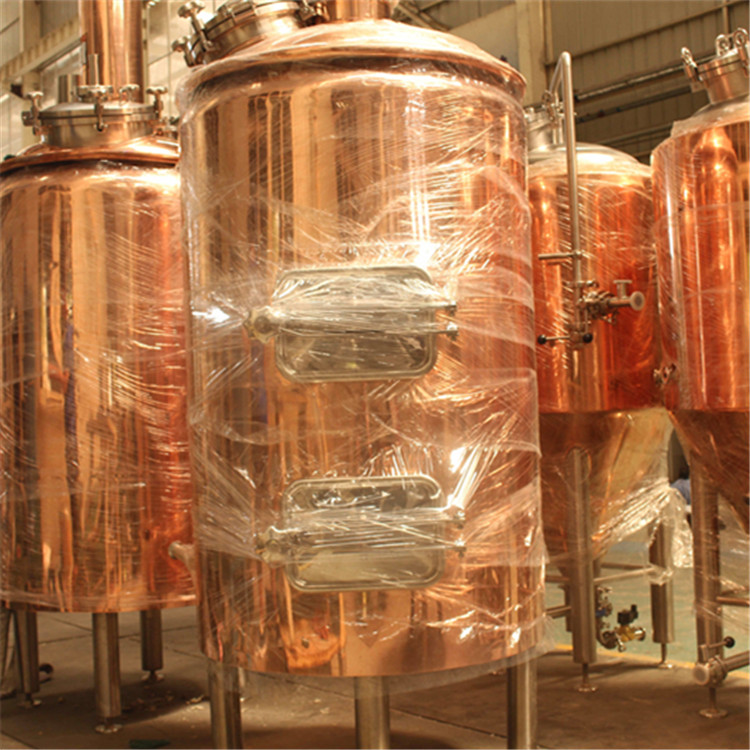

1. The inner liner and outsourcing material is SUS304, the thickness is 3mm, and the outsourcing thickness is 2mm. Dimensions: D=650, H=1660mm;
2. The side feed is filtered, and the quick installation manhole is installed on the side.
3. Heat-resistant polyurethane foam, with a thickness of 75mm.
4. The diameter of the upper steam discharge pipe is ￠63.
5. The upper part of the filter is designed with an open cover and the side outlet; the upper steam discharge pipe has a diameter of ￠63. Configure CIP cleaning ball.
6. Filter plate: milling. The material is SUS304, the opening rate is about 10%; the surface is bright and flat; the part can be opened, easy to clean, and no deformation; the distance between the filter plate and the bottom of the pot is between 2-5cm, and the bottom of the tank is equipped with a bottom cleaning device, uniform No less than 3.
Plate heat exchanger
1. Two-stage cold, suspended type. The design pressure is 1.0mpa and the design temperature is 150 degrees.
2. The frame material is covered with stainless steel, and the plate material is 304.
3. The combination of heat exchange area and process meets: the wort drops from 98 degrees to 8-10 degrees. One section enters normal temperature tap water, the other section enters -5℃ refrigerant.
4. The wort inlet, cooling water and refrigerant inlet all adopt ball valves to control the flow.
Wort aeration device
Venturi principle material is 304, oxygenation is uniform and meticulous, with glass sight glass, oxygenation status is visible.
1. Valve plate material: SUS304;
2. Connection method: quick installation;
3. Filtration accuracy: 40 mesh;
4. Applicable temperature: -20-130℃;
5. Pressure range: 0-10bar.
1. The pump body and impeller are made of SUS304, which meets the requirements of sanitary pumps and is a well-known domestic brand.
2. Frequency conversion control, flow rate 1T/h, head 15 meters.

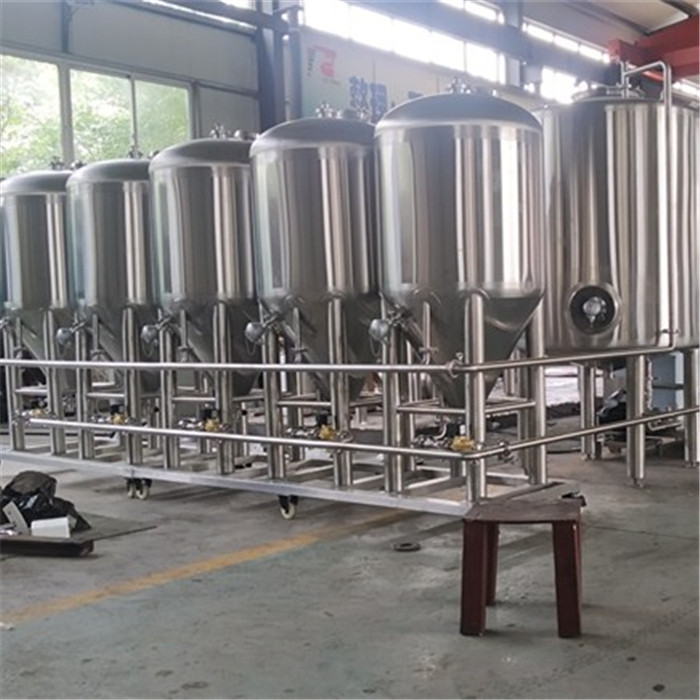

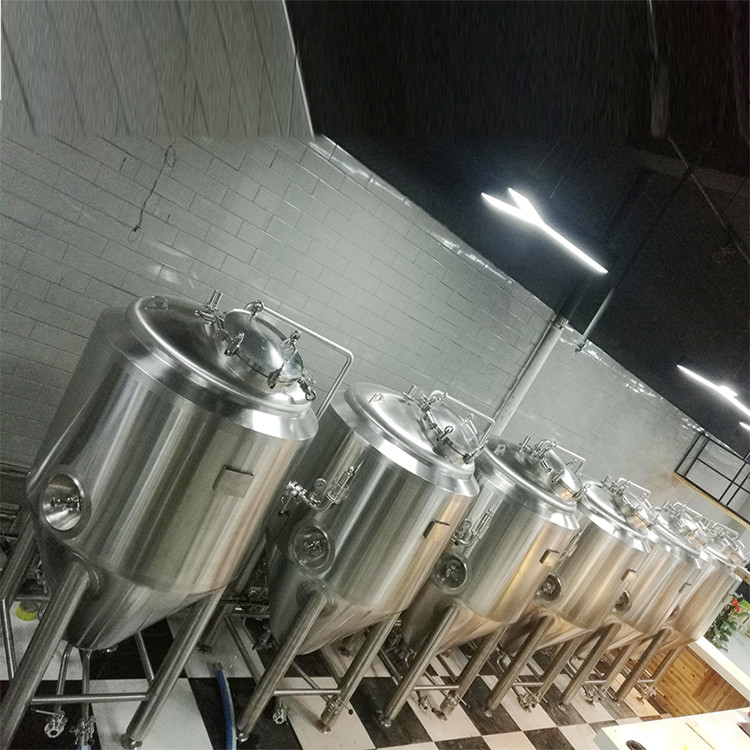

1. The inner tank is made of SUS304, thickness 3mm; the outer material is SUS304, thickness 2mm. Dimensions: D=650, H=1500;
2. Miller board cooling, material SUS304, thickness 1.5mm, the cooling area of the cylinder is about 40% of the surface of the cylinder, and the cooling area of the cone is about 50% of the surface of the cone.
3. Polyurethane foam insulation, thickness 75mm.
4. The tank can withstand a pressure of 2.5bar.
5. Compression-resistant design of cone under 60°.
6. 20% empty capacity. The upper part of the cylinder of the tank is flush with the bottom of the washing ball,
7. The internal roughness is ≤0.4um, and there is no deformation, no scratches, and the welding seam is highly polished. The inner cylinder is mirror polished.
8. The upper dish-shaped head, single seal.
9. The tank body is equipped with a temperature sensing port, a sanitary sampling valve, a pressure gauge, and a breathing valve. There is a sewage port at the bottom, and a search light mirror DN100 is installed at the top.
10. The bottom drain pipe Ø25.
Sanitary regulating breathing valve (two-way safety valve)
Installation method: quick installation, chuck 50.5
1. 1 mobile cleaning pump with control panel.
2. The pump body and impeller are made of SUS304 high quality stainless steel, which meets the requirements of sanitary pumps.
The flow rate is 3 tons/hour, the head is 24 meters, and the voltage level is AC380V, 50Hz.
1. Unit type: air-cooled chiller, voltage level AC380V, 50Hz, total input power 2.4KW.
2. The capacity meets the requirements, the outlet water temperature is -5℃, and the nominal cooling capacity is 6.97KW.
3. Dimensions (L*W*Hmm): 990×760×842
4. Outdoor installation, ambient temperature <35℃.
5. Compressor: fully enclosed scroll type, refrigerant R22.
6. Built-in control
Ice water tank
1. The material is SUS304, the inner liner is 2mm thick, and the outer shell is 2mm, with wire drawing treatment. Dimensions: D=650, H=1970;
2. Polyurethane foam insulation, thickness 80mm.
3. The upper cone head and the outer cone heat preservation head.
4. The tank body is equipped with temperature sensor (-10-150℃, 4-20mA signal, L=200mm, 50.5 chuck connection, brand Fred);
5. There are liquid outlet and sewage outlet at the bottom
6. The internal 2B surface of the equipment, pickling passivation treatment, external surface drawing treatment, beautiful appearance, pipeline layout, opening position, etc. meet the requirements of operation, site installation and visit.
Ice water pump
Flow 3T/H, head 24M
Alcohol water circulation pump, the capacity meets the requirements.380V, 50Hz
Automatic fermentation control
Joint control of imported brand PLC and 10-inch touch screen
1. A special fermentation process that realizes two-stage heating and three-stage cooling;
2. For different beers, different fermentation curves can be preset to meet different fermentation processes.
3. The program can achieve any cooling speed setting within 2-24 hours, so as to prevent freezing in the tank and protect the yeast, and meet the normal progress of the fermentation mechanism.
4. Unattended fermentation process can be realized.
5. The fermentation temperature, time and cycle of each stage can be set and modified arbitrarily.
6. The system capacity meets one fermentation cycle. The system collects and summarizes data every 20 minutes, and can record all data in a fermentation cycle.
8. The accuracy error is ±0.3℃.
9. It can realize the remote monitoring operation of mobile phones and computers (devices need to be connected to the Internet).
Carbon steel sprayed
1 for mash, fermentation and cooling system
Fermentation control solenoid valve
Material: Copper. Brand: Quanjia, diaphragm fluorine rubber, DC24V. 2 spare
Quick fit 51 clamp
4 for fermentation tanks and cooling: -10-150℃, 1 mash and kettle tun: 1 wort board for temperature change.
Wire and Cable
Use shielded wire for signal wire
Stainless steel grid bridge, the quantity and size meet the requirements of on-site installation.
Mash all valves and pipelines.
