4BBL Nano Brewery System

Output capacity:4BBL
Heating method:steam, electricity or direct fire;
Area request:50㎡
Building height requirement:3.5m
Power supply:Single Phase/ 220(110, 240…)v/50(60)Hz
3phase/380(220, 415,440…)v/50 (60)Hz

  • Brand : WEMAC
  • MOQ : 1 SET
  • Price : USD
  • Main market : US、Europe、Australia、France,Canada and so on





4BBL Nano Brewery System product advantage:

1.WEMAC supply beer brewing system with turn-key project.
2.WEMAC provide beer equipment with free consultation,3D design,free installation,training.
3.Three years warranty for the main equipment and spare parts.
4.WEMAC beer machine brew different flavors of beer and brew several flavors of beer at the same time.
5.WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.

4BBL Nano Brewery System Application Scope

Widely used in bars, hotels, beer houses, restaurants, clubs, schools, farm brewery and so on.

4BBL Nano Brewery System basic information

Output capacity:4BBL
Heating method:steam, electricity or direct fire;
Area request:50㎡
Building height requirement:3.5m
Power supply:Single Phase/ 220(110, 240…)v/50(60)Hz
3phase/380(220, 415,440…)v/50 (60)Hz

Note: 1hl=100liter; 1Gallon=3.7854liter; 1BBL(Barrel ) =117Liter

4BBL Nano Brewery System technology configuration



Milling systemStainless steel or carbon steel malt mill
Flexible or stainless steel screw conveyor


Mash system
Material:SUS316L, SUS304,copper;
Mash & kettle& lauter & whirlpool tun are any combination;dimple jacket or dribbling for heat exchanger, rock wool insulation,TH=80-100mm,upper stirring or bottom stirring,lauter plate:milling,side or bottom vinasse discharging
Hot liquid tank for option;
Plate heat exchanger: cooling form,capacity and piping meet requirements;
Oxygenation system:oxygenation form, capacity and interface form meet requirement;
Yeast adding tank depends on the customer’s requirement;
Stainless steel working platform;
Accessories:wort pump, wort tester, hop adding device,hop filter device, saccharimeter,worst rake,CIP system etc

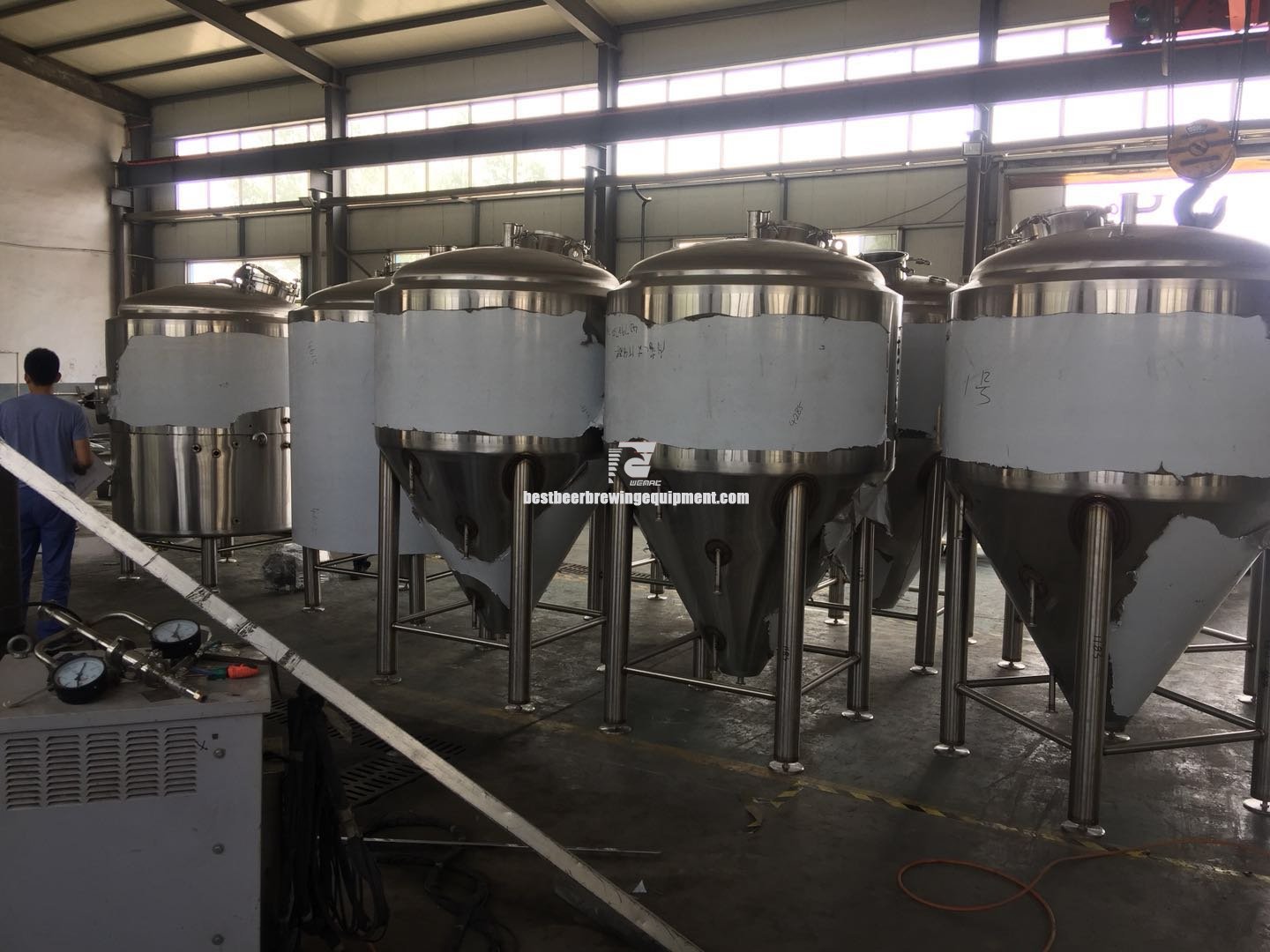

Fermentation system4BBL/8BBL fermentation tank
4BBL/8BBL beer brite tank
Amount depends on the customer's request
Dimple jacket or dribbling cooling
Option:dry hop mouth,CO2 filling device with titanium rod distributor,level gauge
CIPMobile or Fixed CIP
Energy systemHeating system &cooling system design capacity meet the requirement
Electric systemStainless steel electric cabinet with imported brand PLC and touch screen or spraying plastics electric cabinet with push-button
Pipeline fittingsIncluding mash line, alcohol water line and other system line,valves
Filtering and sterilization systemCandle type diatomite filter and pasteurizer

Beer distribution
To bar wine column
Keg washing&filling machine
Bottle brushing&filling machine
Can filling machine
Label machine
