500L 3BBL Craft beer brewery brewhouse steam heating system supppliers breweries ZXF

500L steam jacketed heating brewery,two vessels unit,mash/lauter tun+kettle/whirlpool tun,automaticlly heating control,electric/LPG heating method are available,Complete set of craft beer brewing system suppliers.

  • Brand : Wemac
  • MOQ : 1 Uroup
  • Price : USD
  • Main market : US、UK、Europe、Australia、France,Canada and so on

Brewhouse System

We offers flexible Brewhouse / Brew Kettle designs to ensure that optimal efficiency is achieved while including all requirements that a customer may have (such as spacing, tank distribution, etc.) Producing a high quality beer requires consistent brews and although experience plays a crucial rolein the process, the limiting factor is the quality of the Brewhouse being used. Having a high quality Brewhouse will ensure that you have the necessary tools to keep the same flavor profile with every batch!

1) Fully insulated mash tun and brew kettle mounted on a modular, radius edge, stainless steel under-frame, designed for easy and efficientinstallation in almost any structure.
2) 100% certified 304L sanitary food grade stainless steel in all of our components. Zero mild steel in our brewhouse, kettles or brew deck.
3) A Mash out manway and true Vee-Wire False Bottom for rapid and efficient cleanup.
4) A Design that allows infinite control, endless flexibility and precise repetition.
5) All necessary equipment to monitor the quality of the brew.
6) Steam, Electric or Direct Fire for heating.

steam heating-craft beer-beer brewing-brewery-brewhouse-for sale-sell-discount-500L-5bbl-3bbl.jpg

Working capacity:500L(5HL),two vessels,mash/lauter tun+kettle/whirlpool tun

Mash/Kettle Tun



Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

ABB stirring motor,80mm rock wool for insulation ,with temperature
sensor,cleaning tube, standard Washing ball

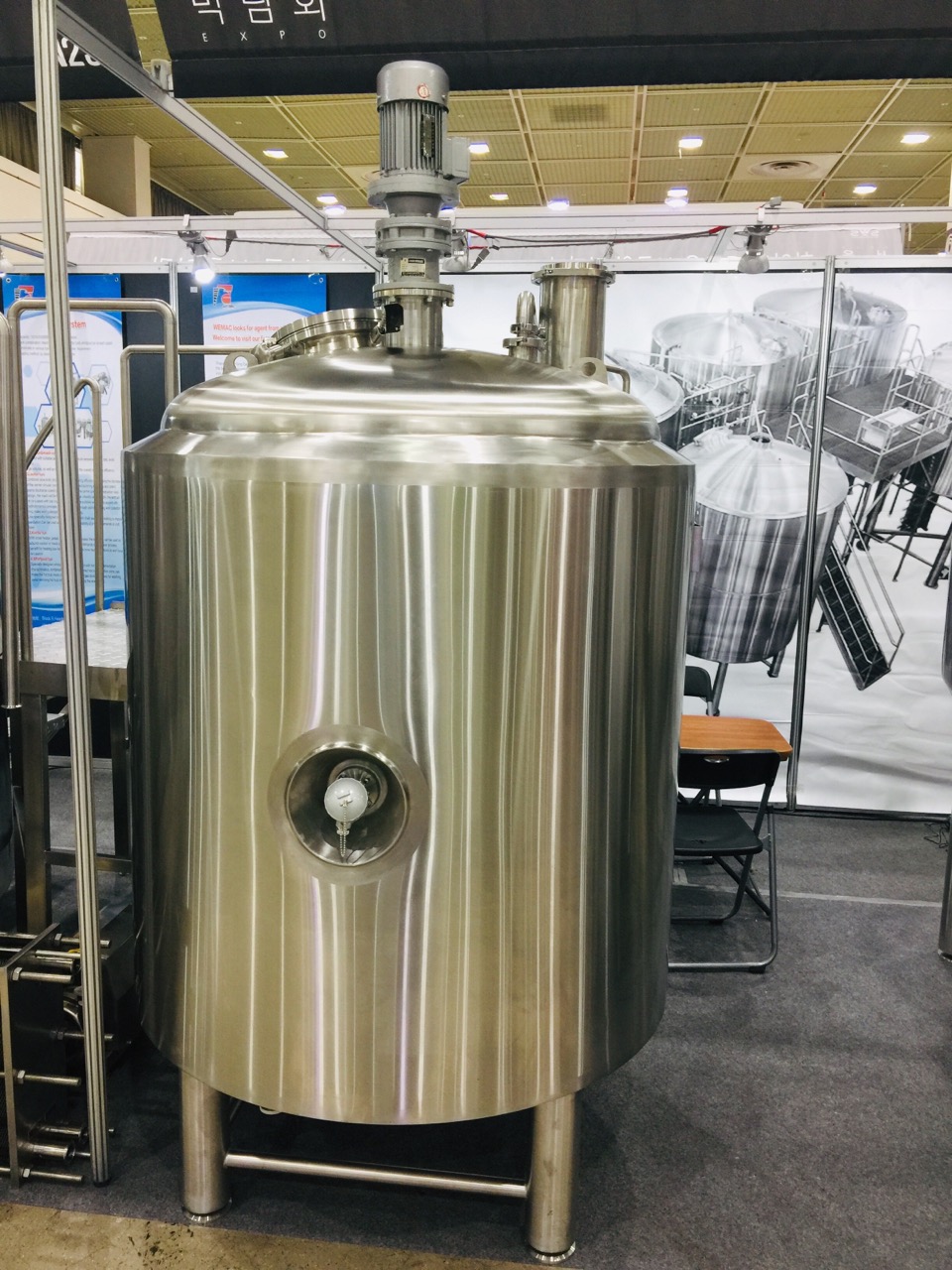

kettle tun-whirlpool tun-heating tank-beer making-brewing system-brewhouse machine.jpg

Lauter and whirlpool tank share a same tank,top motor

Lauter/Whirlpool Tun


Material:SUS316L/ SUS304/copper

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

80mm rock wool for insulation

Lauter tun,side mounted grain outdoor with spent grain chute,sampling valve,sight glass,

Lauter plate:Milling,Racking device,Tangential whirlpool inlet

1) 100% certified 304 sanitary food grade stainless steel in all of our components. Zero mild steel in our fermenter and BBT tanks.
2) 360 Spray ball for effective CIP cleaning
3) Manway for easy access to the interior of the tanks (for cleaning or inspection)
4) Safety Pressure valve to protect the tanks from being over pressurized or creating negative pressure.
5) Accessible sampling valve for beer monitoring
6) Carbonation / Aeration Stone

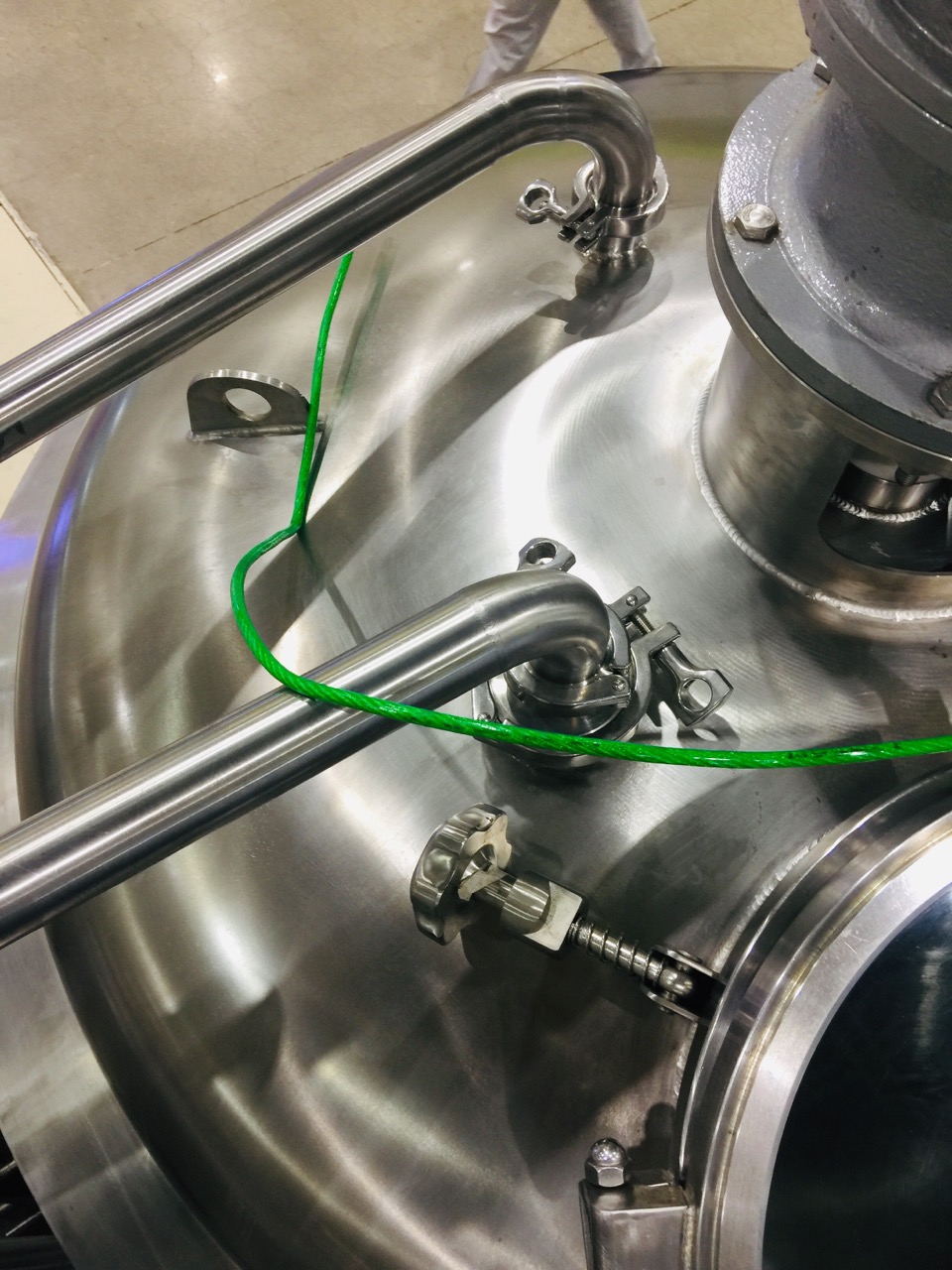

top head-mash tun-beer making-agent-suppliers-breweries-brewer-brewery-beer brewing.jpg

500L-3BBL-5BBL-craft beer brewing-beer making-brewery-conical fermenter-fermenter tank-fermentation tank-FV-stainless steel.jpg

Double wall,stainless steel,top sight glass



Material:SUS316L /SUS304

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

80 mm PU for insulation,top or side manhole,

Option:Dry hop mouth,CO2 filling device With titanium
rod distributor;level gauge


WEMAC supply beer brewing system with turn-key project.provide beer equipment with free consultation,3D design,free installation,training.

Three years warranty for the main equipment and spare parts.

WEMAC beer machine brew different flavors of beer and several flavors of beer at the same time.

WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.

For more detailed information you want to know,please contact us in time.
