How to use 25L Carlsberg flask tank in yeast breeding and transfer?

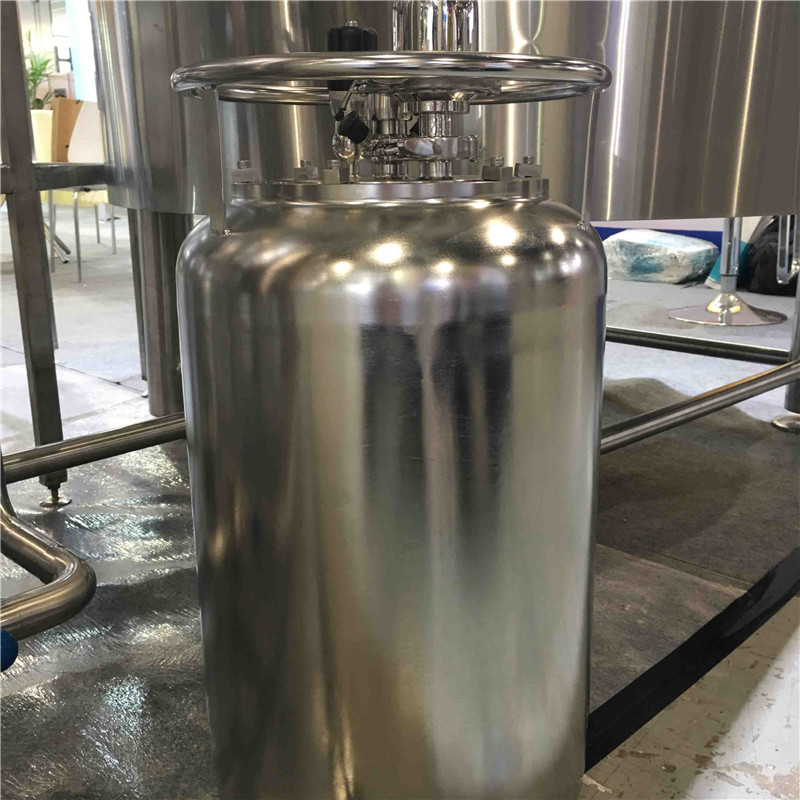

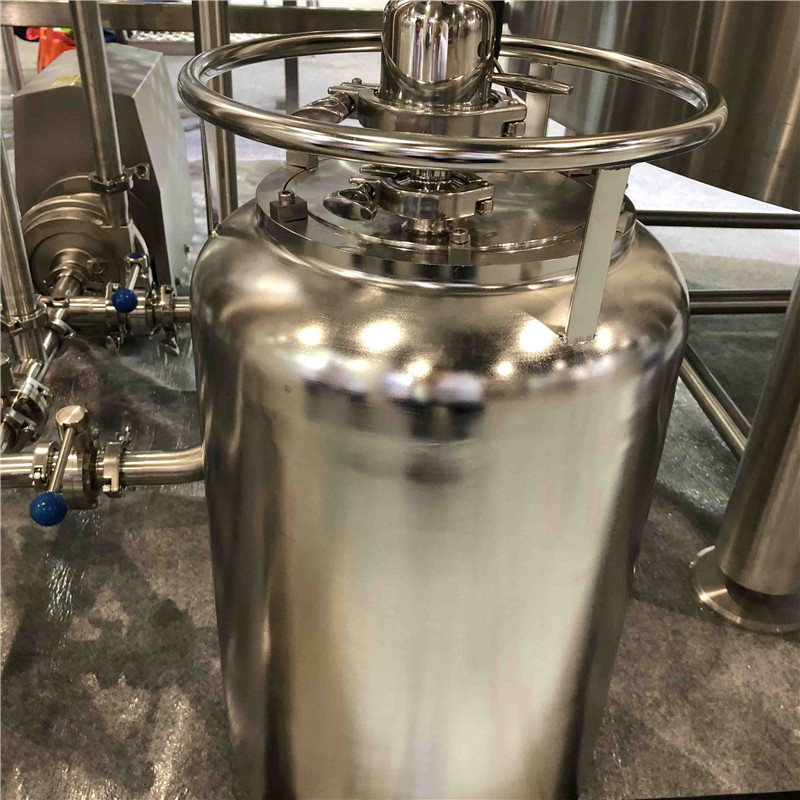

Carlsberg-flask-for sale.jpg

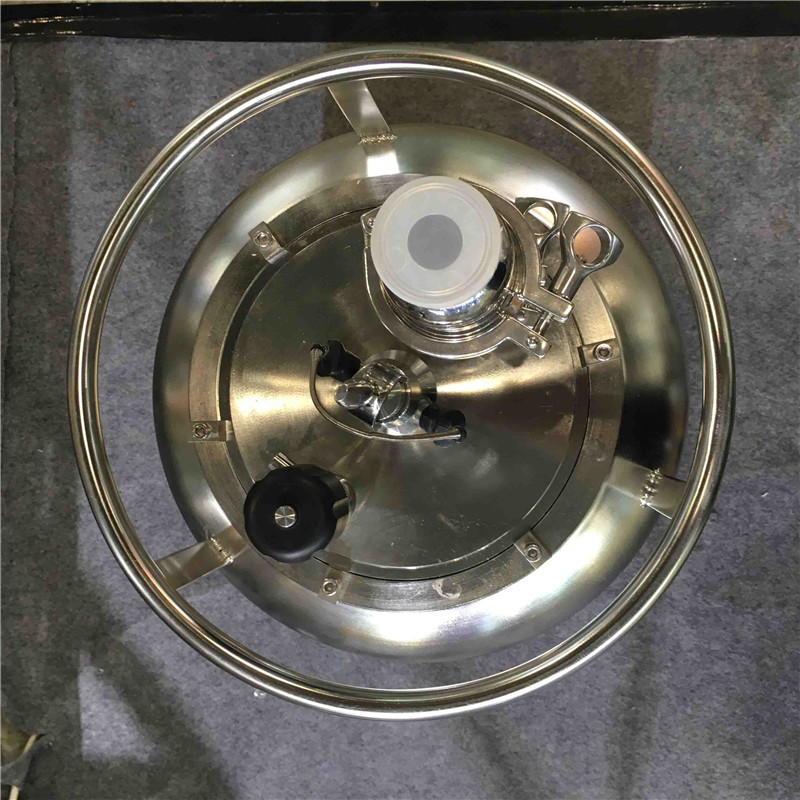

top view-carlsberg flask-yeast tank.jpg

Inner tank.jpg

accessories-of-carlsberg flask.jpg

Code

Name

Model

Technical date

Unit

Qty

Brand

Description

1

Carlsberg

25L

Material:304
Thickness:3mm
Design pressure:air pressure
Design temperature:100℃
Surface finish:Mechnical polish
Dimensions: φ320×600

set

1

WEMAC

酵母储存培养
Yeast storage and breeding

2

Breathing valve

DN25

Material:304
Connection:Fast clamp

set

1

WEMAC

Filter the gas,block the entry of bacteria

3

Safety valve

PT1/4"

Material: 304
G1 / 4 "male thread
Pressure range: 0-0.2mpa

set

1

WEMAC


4

Manual butterfly valve

DN25

Material:304
Connection: Fast clamp                                              Sealing:EPDM
Available temperature: -20~130℃
Pressure range:0~10bar

set

1

WEMAC


5

Aseptic sampling valve

DN25

Material: 304
Connection method: Fast clamp

set

1

WEMAC


Hot to use the carlsberg flask?



User Manual (Use Process of Carlsberg flask)

1. Open the sealing wrench, mobilize the sealing pressure block, and open the top cover of the carlsberg flask.

2. Add about 80% of the total capacity of wort (medium,) to the cleaned Carlsberg flask, and seal the top cover of the Carlsberg flask

3. Heat the Carlsberg flask in an electric stove, steam pot or other heater to sterilize the wort (medium), and the boiling time is 30-40 minutes (steam sterilization can also be used, and it needs to be calculated separately based on temperature, pressure, etc.) The amount of wort and steam).

4. After sterilization, place the Carlsberg flask in a refrigerator or cold space to cool to room temperature naturally.

The aseptic breathing valve (and filter), sampling valve, safety valve, etc. should be installed before the wort is sterilized so that the steam discharged from the tank can be sterilized during the wort sterilization.

5. Oxygenate the wort cooled to room temperature. The oxygenation process should be carried out slowly. The wort will produce a lot of foam when placed, and the oxygenation time should be controlled at about 10 minutes.

6. After the completion of wort oxygenation, insert the original strain into the Carlsberg flask under aseptic conditions.

7. Carry out yeast aerobic culture at the specified temperature and time.

8. After the yeast cultivation is completed, pass in sterile air to press out the yeast to the yeast expansion tank. After the yeast is fully discharged, it is best to continue oxygenating for 1-2 minutes to ensure that the inoculation process is completed. It is best to close the inoculation container and the valve of Carlsberg flask stops the gas supply.

9. All connecting pipes, valves, interfaces, etc. must be thoroughly sterilized before inoculation.

10. The oxygen pressure does not exceed 0.15Mpa.

11. After the Carlsberg flask is used, it should be disassembled and washed in time, and generally cleaned manually (pipe cleaning fluid can be used).

Check the filter, cover seal ring, sampling valve rubber ring, etc. for contamination or damage at any time. If any,replace it in time.
