integrated beer machine and separated beer machine of craft beer system


Composition of beer equipment

We need to know how beer is brewed and what is its process? What kind of equipment area is needed to complete the process.

  1. Raw material treatment, mainly composed of malt grinder


2. Saccharification system mainly consists of saccharification pot, filtration, boiling and rotary sedimentation.


3. The fermentation system is mainly composed of fermentation tanks. The number of fermentation tanks depends on the daily output and the type of beer


4. CIP cleaning system is mainly composed of mobile cleaning vehicle


5. The refrigeration system is composed of ice water tank, refrigerator, ice water pump, etc.

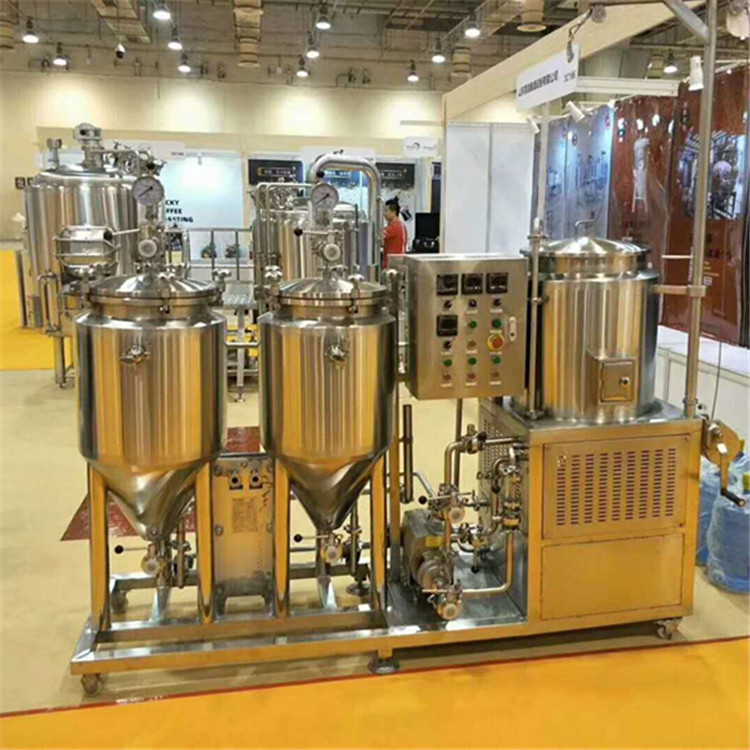

What is all in one beer machine

As the name suggests, the saccharification system is a tank, in which saccharification, filtration, boiling and rotary whirlpool are all carried out. It can also be made into one pot and two containers. The upper container is saccharification and filtration, and the lower one is boiling and rotary sedimentation.


Separated beer machine of craft beer system

The saccharification system is composed of two bodies and two vessels, two bodies and three vessels, and three bodies and three vessels. The specific configuration should be determined according to the output and usage habits of customers

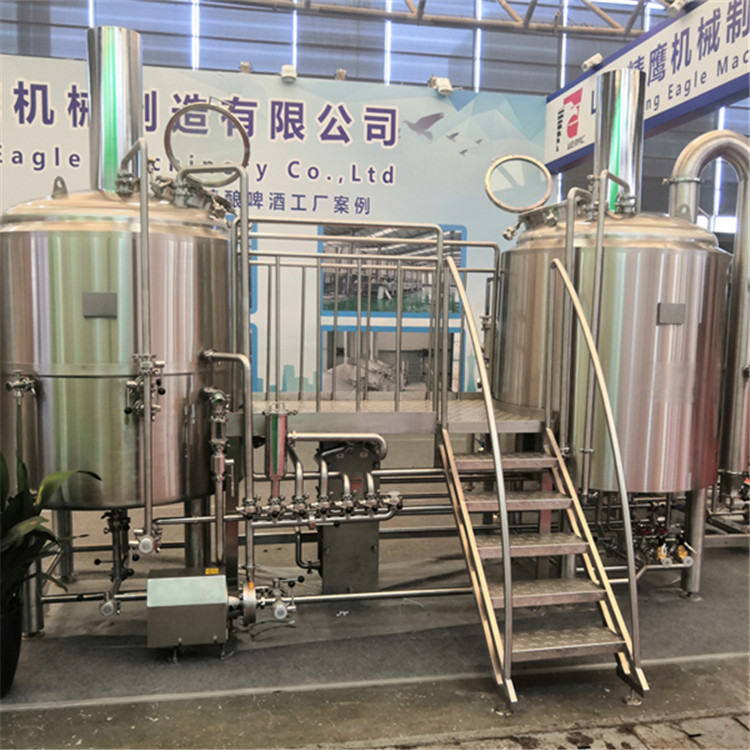

500L-5HL-system-beer making-fermenter-brewery.jpg

Characteristic of all in one machine

One vessels one pot:The utility model has the advantages of small floor area, space saving, simple operation and low cost. The requirements for the taste and color of the wine are not high.


One vessels two pot:

Low yield, suitable for less than 500L, relatively low cost, save space, simple operation, the production of beer is relatively high quality.


Characteristic of Separated beer machine of craft beer system

Two vessels two pot:Generally American style saccharification system, generally with hot water tank. Saccharification and filtration in a container, boiling and whirlpool in a container.


Two vessels three pot:One vessel is a pot for saccharification and boiling, and the other vessel is composed of two pots. The upper pot is for filtration, and the lower pot is for rotary sinking. This is a German equipment, which is commonly used.


Advantages and disadvantages of all in one machine and extension equipment


 All in one machine

Advantages: this kind of equipment has the advantages of small area, convenient installation and less capital investment. The fermentation system of the all-in-one machine is also a separate tank, and the advantages are that it can be used by plug-in and easy installation.


Disadvantages:

(1) Because the all-in-one machine combines the saccharification, filtration, boiling and sedimentation system of beer fermentation system into a tank, the operation is more complex, and there are many valves, so it is easy to cause mistakes in the operation process;


(2) One of the most important steps in wort preparation is boiling. When several cans are combined into one can, the actual capacity of the tank is insufficient, and the wort can not reach the boiling strength, which is easy to overflow,


(3) In the process of wort preparation, enough boiling strength can make the protein in wort agglomerate and precipitate, because the equipment of all-in-one machine can not reach the boiling strength, the protein content in wort is high, and the liquor quality is poor;


(4) The refrigerator is located at the bottom of the fermentation tank. The copper tube is located on the wall of the tank. The Freon goes through the copper tube, but the temperature of Freon is too low, which is easy to cause the wine body on the wall to freeze and cause the loss of the wine body;


(5) The bottom of the fermentation tank is flat, without cone, the impurity precipitation effect in the wine body is not good, the integrated machine can not recycle the yeast without cone, which greatly increases the production cost;


(6) The all-in-one machine mostly uses electric heating tube for heating, because the heating tube is in direct contact with wort, wheat grains are easy to adsorb on the heating tube, resulting in the smell of paste pot.


Now the mainstream equipment in all kinds of places, no matter how big or small, needs more investment, but the failure rate is low, and the wine tastes good. All kinds of distillery craft circle are approved equipment

advantage:


(1) It can produce 2-3 batches of beer in one day, which increases the work efficiency;


(2) There is enough boiling space in the split pot, the wort can reach enough boiling strength, the precipitation effect of wort protein is better, and the wine body is clear;


(3) The reasonable ratio of height to diameter of beer fermentor and the design of 60 degree cone can better precipitate impurities and improve the clarity of the wine;


(4) Most of the fermenters are 60 degree cones, which can precipitate yeast and recycle yeast, so as to improve the reuse rate of yeast and reduce the production cost;


(5) The refrigeration of beer fermentation tank is to design a layer of water belt outside the inner tank of the fermentation tank, equipped with ice water tank. The ice water tank contains 25% alcohol solution, and the minimum temperature is - 6-8 degrees. Through water circulation, the temperature control of the fermentation tank is more relaxed, the cooling time is prolonged, and the wort can form good convection, There is no big temperature error in the wall and center of wort tank, and the temperature control is better. All tanks are cooled by one refrigerator, and large brand refrigerator is selected to reduce the accident rate of equipment;


(6) The split equipment is usually heated by boiler steam, which is in indirect contact with wort. The wheat grains will not be adsorbed on the heating tube, resulting in the smell of paste pot.
