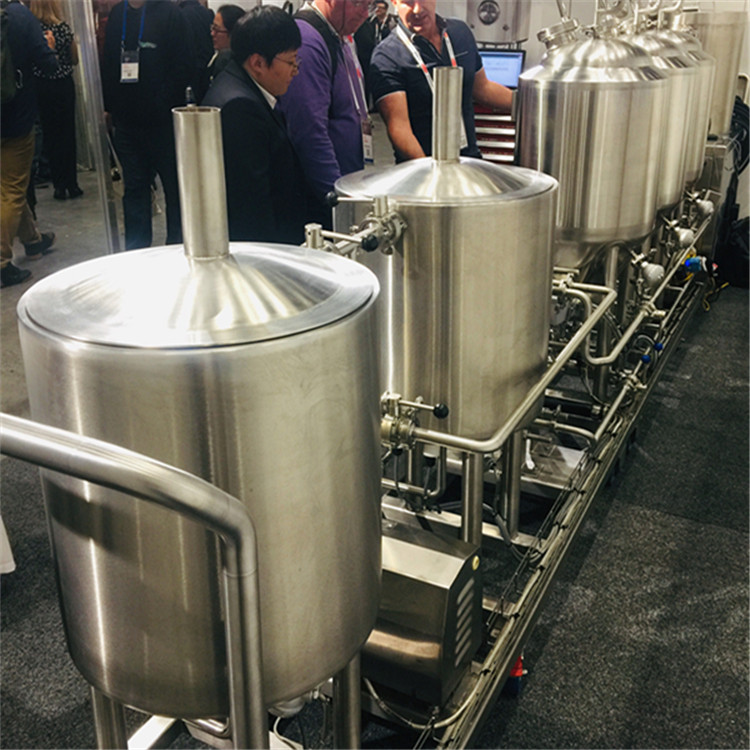

50L micro brewery system in US

Micro-beer-brewing-beermaking-home using-beer making-system.jpg

Configuration of 50L micro brewery system in US

Name	No.	Component	Specification	Qty	Brand	Technical parameter description

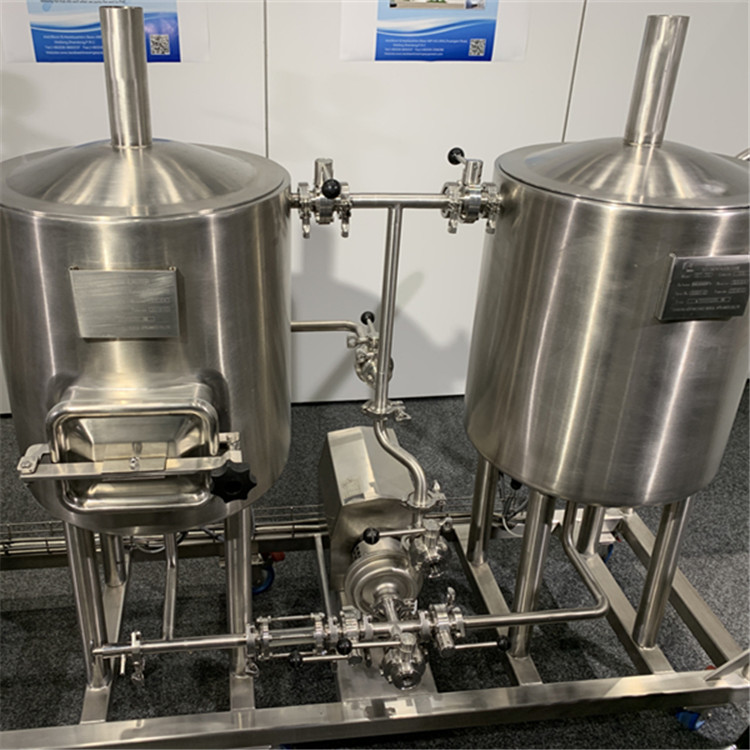

Mash system	1	Mash/lauter tun	50L	1Set	WEMAC	1. The inner liner and outer material are made of SUS304, the thickness is 3mm, and the outer material is 2mm thick. Dimensions: D=500, H=1250mm; 2. Electric heating, 4KW*1, AC380V/3PH/60Hz. 3. Heat-resistant polyurethane foam, with an insulation layer thickness of 50mm. 4. Filter side feed 5. The upper part of the filter is designed with an open cover and the side outlet; the upper steam discharge pipe has a diameter of ￠63. 6. Filter plate: milling. The material is SUS304, the opening rate is about 10%; the surface is bright and flat; the part can be opened, it is convenient to clean, and it is not deformed; the distance between the filter plate and the bottom of the pot is between 2-5cm, and the bottom of the tank is equipped with a bottom cleaning device, uniformly distributed No less than 3. 6. The accuracy of the temperature sensor is ±0.5 degrees Celsius, and the temperature range is 0-150 degrees Celsius. 7. The interior of the equipment is highly polished, and the welding seam has been finely processed without uneven deformation. The appearance of the equipment is beautiful, and the pipeline layout and opening positions meet the requirements of operation, site installation and visit.
	1	Mash/lauter tun	50L	1Set	WEMAC
	2	Kettle/whirlpool tun	50L	1Set	WEMAC	1. The inner liner and outsourcing material is SUS304, the thickness is 3mm, and the outsourcing thickness is 2mm. Dimensions: D=500, H=1250mm; 2. Electric heating, 4KW*1, AC380V/3PH/60Hz. 3. Heat-resistant polyurethane foam, with an insulation layer thickness of 50mm. 4. The diameter of the upper steam discharge pipe is ￠63. 5. Rotary counterclockwise tangential feeding, the feeding port is 1/3 below the liquid level; it has a liquid level tube, a breathing hole, and a quick-installation manhole on the side. There is a bypass between the suspension discharge pipe and the sewage pipe.
	3	Plate heat exchanger		1Set	WEMAC	1. One-stage cold, suspended type. The design pressure is 1.0mpa and the design temperature is 150 degrees. 2. The frame material is carbon steel spray paint, and the plate material is 304. 3. The combination of heat exchange area and process meets: the wort drops from 98 degrees to 8-10 degrees. 4. Both the wort inlet and the cold water inlet use ball valves to control the flow.
	4	Wort pump		1Set	China	1. The pump body and impeller are made of SUS304, which meets the requirements of sanitary pumps and is a well-known domestic brand. 2. Frequency conversion control, flow rate 1T/h, head 15m 0.55kw.
	5	Mash part frame		1set	WEMAC	SUS304 material, including moving wheels, frame, etc.

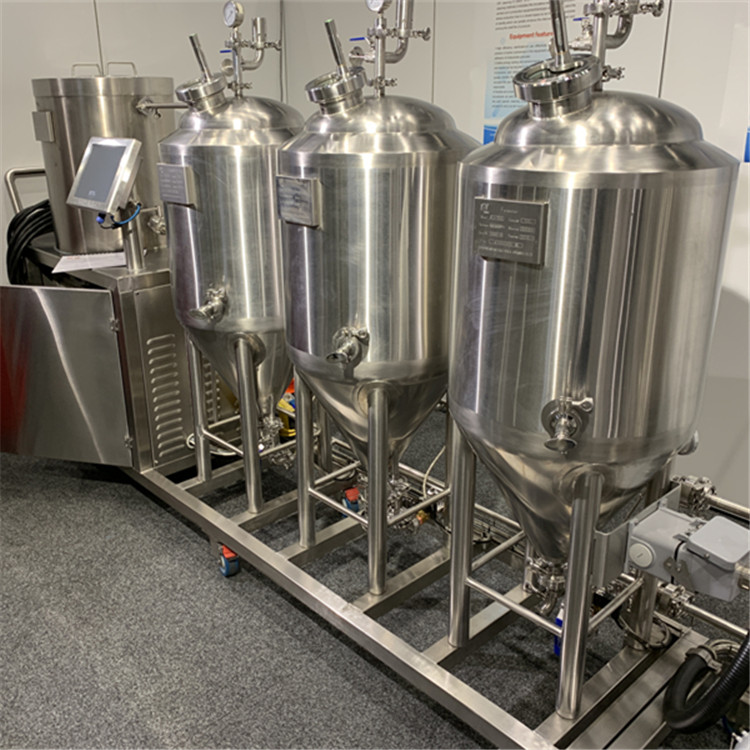

Fermentation system	1	Fermenter	100L	5 Sets	WEMAC	1. The inner liner is made of SUS304, 3mm thick; the outsourcing is made of SUS304, 2mm thick. Dimensions: D=660, H=1500; 2. The temperature of the dribbling is SUS304, the thickness is 1.5mm, the cooling area of the cylinder is about 40% of the surface of the cylinder, and the cooling area of the cone is about 50% of the surface of the cone. 3. Polyurethane foam insulation, thickness 75mm. 4. The tank can withstand a pressure of 2.5bar. 5. Cone compression design at 60°. 6. 20% empty capacity. The upper part of the cylinder of the tank is flush with the bottom of the washing ball, 7. The internal roughness is less than or equal to 0.4um, and there is no deformation, no scratches, and the welding seam is highly polished. 8. The upper dish-shaped head with heat preservation head. 9. The tank body is equipped with temperature sensor, sanitary sampling valve, pressure gauge, mechanical pressure regulating valve, breathing valve, with a sewage outlet at the bottom, and a search light mirror DN100 on the top. 10. The bottom drain pipe Ø25.
	1	Fermenter	100L	5 Sets	WEMAC
	2	Radial quick assembly pressure gauge		5pics	WEMAC	Material: SUS304 Installation method: radial quick fit, clamp 50.5 Pressure: 0-0.4MPa
	3	Breathing valve		5pics	WEMAC	Material: SUS304 Installation method: quick fit, clamp 50.5 Pressure: 0.2MPa
	4	Fermentation frame		1set	WEMAC	SUS304 material, including moving wheels, frame, etc.
	5	Bag filter		1set	WEMAC
Cooling system	1	Chiller and accesories	1HP	1set	WEMAC	1. Unit type: refrigerated vortex compressor, single-phase voltage rating, AC380V, 60Hz. 2. The capacity meets the requirements, and the outlet water temperature is -5°C. Cooling capacity 750kw; 3. Outdoor installation, ambient temperature <35℃. 4. Compressor: fully enclosed scroll type. 5. Welding port, exhaust pipe 1/2", suction pipe 3/4"; 6. Contains high and low pressure gauges, expansion valves, copper pipes, condensers, fans, unions, etc. 7. Titanium evaporation tube ∅14, total outer diameter is about 300mm, inlet and outlet pipe ∅12*1, with 2 sets of copper union
	2	Alcohol/cooling water tank	50L	1Set	WEMAC	1. The material is SUS304, the inner liner is 2mm thick, the outer is 2mm, and polyurethane foam is used for heat preservation. Dimensions: D=500, H=1460; 2. Automatic temperature control.
	3	Horizontal centrifugal pump	Flow 1T/H, head 12M, 380V	1台 1Set	CNP,China	1. Flow rate 1T/H, head 12M 2. Alcohol water circulation pump, the capacity meets the requirements.
Electrical System	1	Automatic fermentation control	Imported brand PLC and 10-inch large screen touch screen combined control	1Set	WEMAC	1. A special fermentation process that realizes two-stage heating and three-stage cooling; 2. Different fermentation curves can be preset for different beers, so as to meet different fermentation processes. 3. The program can realize the setting of any cooling speed within 2-24 hours, so as to prevent freezing in the tank and protect the yeast, and meet the normal progress of the fermentation mechanism. 4. Unattended fermentation process can be realized. 5. The fermentation temperature, time, period, etc. of each stage can be set and modified arbitrarily. 6. The system capacity meets one fermentation cycle. The system collects and summarizes data every 20 minutes, and can record all data in a fermentation cycle. 7. Traceability. 8. The accuracy error is ±0.3℃.
	2	switchboard	SUS304	1 Set	WEMAC	1 for mash, fermentation and cooling
	3	Fermentation control solenoid valve	1/2”	3Pics	Sanlixin,China	Material: Copper. Diaphragm fluorine rubber, DC24V.
	4	Temperature Sensor	51clamp	5Pics	China	4 for fermentation tank and cooling: -10-50℃, 2 for mash and boiling: 0-150℃; 1 wort temperature detection: 0-150℃. The length of the probe is designed according to the drawings.
	5	Wire and Cable		1set	China	Use shielded wire for signal wire
	6	Threading tube		1set	China	Stainless steel decorative pipes, the quantity and size meet the requirements of on-site installation.
Pipeline and accessories	1	Mash pipeline	Φ32	1set	WEMAC	Mash all valves and pipelines.
	2	Cooling pipeline	Φ25/Φ19	1set		Use stainless steel pipeline, 3 cm rubber-plastic sponge for heat preservation, outsourcing PAP heat preservation aluminum-plastic composite sheet
	3	Rubber hose	Φ32	1set		#################################################################
	4	Brewing tools		1set		one rake, 20 wind pipe quick connectors Φ10. 20 slipknot gaskets each. 1 sight glass.
	5	Wort measure barrel		1 pic

Feature of 50L micro brewery system

The utility model relates to a home brewed beer equipment, which belongs to a small beer brewing system. Small space, high degree of automation, simple and easy to operate. The saccharification process is electric heating, which is generally equipped with two device specifications (saccharification filtration + boiling rotary sedimentation), with ice water tank, plate heat exchanger, wort oxygenator, wort pump, etc; The fermentation process is automatically controlled by PLC, and 6 fermentation tanks are generally configured according to the standard. It is a self entertainment beer brewing equipment. The inner tank and outsourcing materials of the whole set of equipment meet the requirements of international standards, with a thickness of 3mm and a thickness of 2mm. After seamless connection, high polishing and fine grinding, the equipment meets the operating conditions in terms of pipeline layout and opening position.

Specific data of 50L micro brewery system

Equipment output	100L/batch
Equipment power	12KW
Heating mode	Electric heating
Area covered	15㎡
Total water consumption	0.5m3/d
Malt consumption	20Kg
Hop consumption	60g
Yeast	100g/1L
