Commercial brewing equipment can provide various beer.Commercial Brewery Manufacturing Equipment Beer Brewery Manufacturing Equipment is usually mainly equipped with brewhouse system, various capacity and quantity of fermentation tank and brite beer tank, glycol cooling unit, controlling system, CIP and some other auxiliary equipment such as grain miller, keg filler/rinser, bottling machine etc.We can provide turnkey commercial brewing system,design,production and sales as one,welcome to consult.
Commercial Brewery Equipment,brewery system,Brewing equipment manufacturer,Commercial beer brewing system,
Commercial Brewery Equipment supplier Italy for sale,draft beer brewery equipment beer manufacturing equipment for sale, Automatic /semi-automatic operation system ,need one or two brewer operate,With our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes.We have different capacity from 50L to 10000L per batch , our stainless steel Home Brewing Equipment approved Pessure CE, ISO ,ROHS,TUV certificate.Have good feedback from our clients.
With its high automation and stable performance, 1000L craft beer equipment makes some bar owners and hotel owners like it very much. Using their own carefully formulated formula to attract high quality with unique beer has become the mainstream of the times. The equipment is made of stainless steel, which is very durable.
Mash system is one of the most important key parts of the whole brewing system
The Mash system is composed of boiling ketlle, lauter tank, whirlpool tank and process pipeline. The mash boiler is steam heating type; Electric heating type; Gas heating type . The tank body is made of "rock wool or polyurethane" with double-layer insulation. The heating area is enough to reach the boiling evaporation capacity of wort, which can effectively prevent the leakage of heat energy consumption. The inside of the tank is finished with international standard stainless steel304. The external is made of stainless steel 304, with simple and elegant appearance,Adding stirring system at the top of mash boiling pot can make mash evenly; A plow blade system is installed at the top of the filter tank to ensure uniform filtration of mash to avoid oxidation. Vortex precipitation system; Excess protein and impurities can be completely separated by tangential line and centrifugal force to achieve the purity of mature wort.

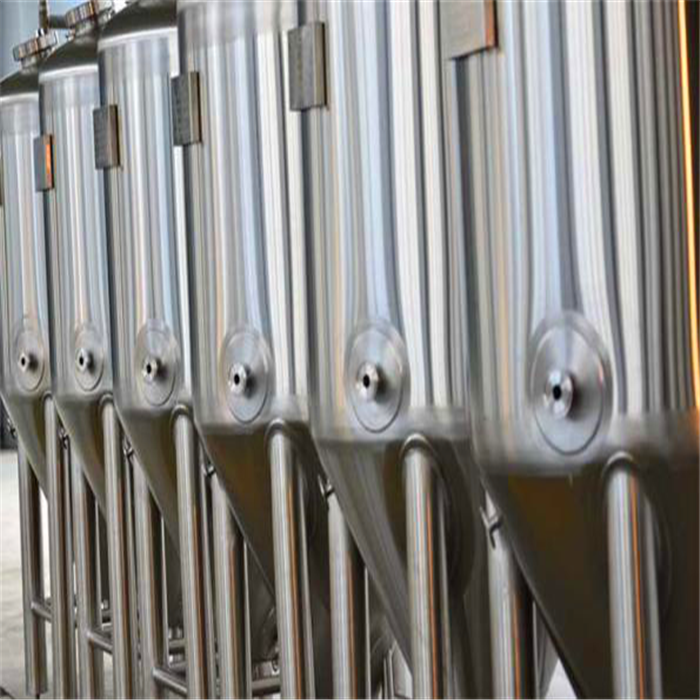

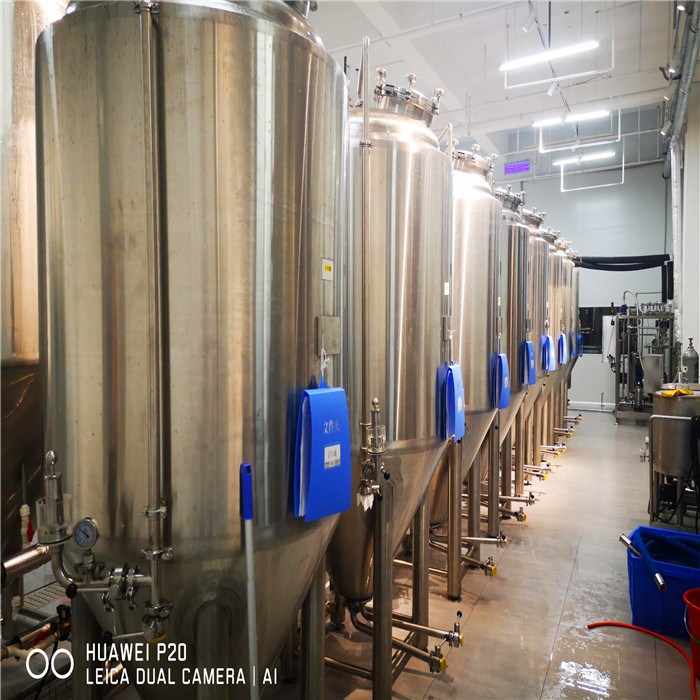

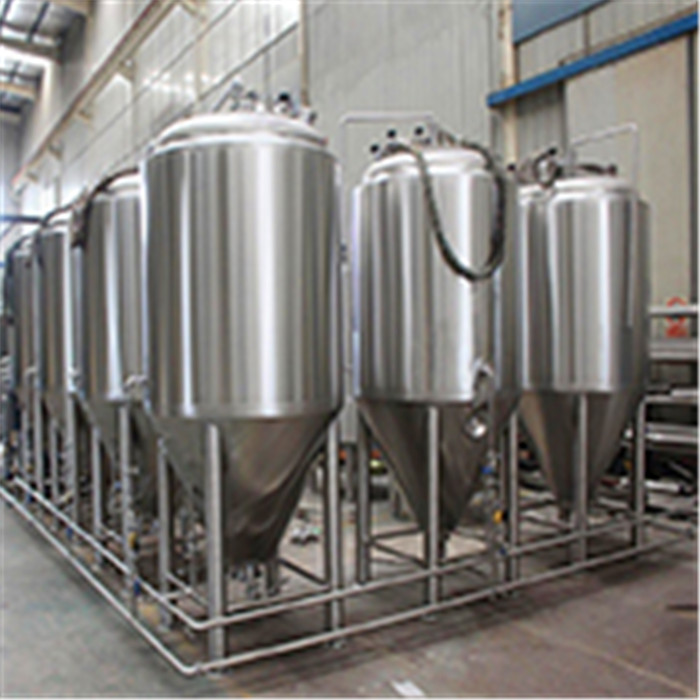

Beer fermentation tank parts of the whole brewing system
The inner tank is made of SUS304,thickness3mm,outsourcing is made of SUS304,thickness 2mm.Miller board jacket,material SUS304.Polyurethane foam insulation,thickness 80mm.The tank can withstand a pressure of 2.5bar.Compression-resistant design of cone under 60°.The uppre part is equipped with manhole and positive and negative pressure safety valve,single head.The tank body is equipped with temperature sensor(-10-150℃,4-20mA signal ),sampling valve,there is a sewage outlet at the bottom,and a wine valve at the bottom of the cone,dried hops,The inernal 2B surface of the equipment,pickling passivation treatment,external surface drawing treatment,beautiful appearance,pipeline layout,opening position,etc.
After purchasing the equipment, our company’s technicians are responsible for equipment installation and commissioning. In the future, there will be wired technical support. During the warranty period, if you encounter any problems, you can contact us and we will help customers solve the problems as soon as possible.
Shandong Eagle Machinery Co., Ltd.(WEMAC) beer brewing equipment was established in 1958, WEMAC beer brewery equipment is one of the top brewery equipment manufacturers and factory, including 70 senior technologists. We have 530 employees and workers in total. WEMAC provides water treatment equipment for above 60% medicine factories in Chinese local market, totally 3000+ factories and companies.
WEMAC also provides high quality large scale beer brewing equipment, beer brewery technical guidance, personnel training, technological formulation, beer new technology research and development.We provide a complete set of beer brewing system solutions.
